MORE RIDING PLEASURE.

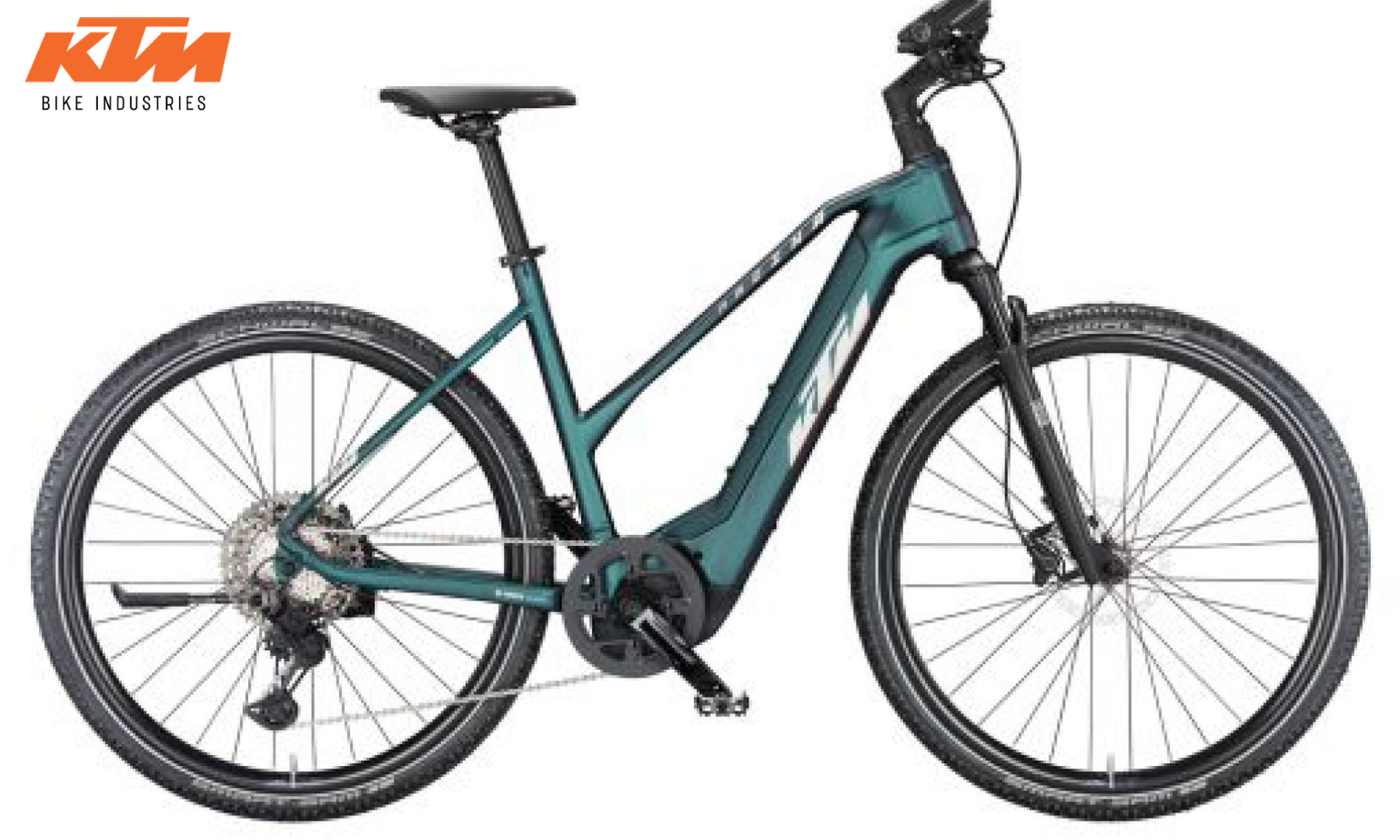

The KTM designers constantly prove their expertise in the trekking segment. The SPORT models 710 and 720 remain true to their basic principle, but have been completely re-created for the model year 2022. The heart of these bikes is a newly developed frame, in combination with the new BOSCH SMART SYSTEM. With this self-contained BOSCH system, easily recognisable by the new control unit, you are ready for the digital future. The system also includes the KIOX 300 display, the BOSCH PERFORMANCE LINE CX motor, a 4A charger and the most powerful BOSCH POWERTUBE battery ever (750WH) for even more range. In addition, the EBIKE FLOW APP opens the door to the connected world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the battery is easier than ever before. POWER TUBE TOP LOADER (PTTL) is the name of KTM’s own innovation for this user-friendly battery handling. SHIMANO offers another highlight with the LINK GLIDE shifting technology. These shifting components, specially developed for eBike use, ensure precise and smooth shifting processes even under high loads. The result is a long lasting, three times more durable drivetrain.
Specification
E-SYSTEM BOSCH PT-CX7K4
FRAME Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
FORK Suntour NCX-D Air LO 63mm
MOTOR Bosch PERFORMANCE CX Gen.4 smart system – 25km/h / 85Nm
DISPLAY Bosch KIOX TFT Display smart system
BATTERY Bosch PowerTUBE 750Wh hor. smart system
CHARGER Bosch STANDARD Charger 4A smart system
R. DERAILL Shimano Deore XT M8130-11 LG shadow+
SHIFTLEV. Shimano Deore XT M8130-11 LG
CRANKSET KTM TEAM ISIS 170mm Q16
CHAINRING FSA Megatooth steel 42T
SPROCKET Shimano LG600-11 / 11-50
CHAIN KMC e11 Sport EPT e-bike
BRAKE Shimano Deore XT T8100 / M8120 4-Piston
ROTOR Shimano RT64 CL 180 / EM600 CL 160
WHEEL F KTM Line – Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
WHEEL R KTM Line – Shimano UR600 CL 32H 135-5QR / Ryde Rival Sport 32H 622x25C / DT Alpine II 2.34 black
TIRE F Schwalbe Marathon Mondial Perf. RaceGuard 47-622
TIRE R Schwalbe Marathon Mondial Perf. RaceGuard 47-622
GRIP Ergon GP30 SD with Barend
BAR KTM Team low rizer 640mm
STEM KTM Line 20° internal
HEADSET Acros AICR internal 1.1/8>1.5″ angle limit
SADDLE Selle Royal Essenza+
SEATPOST KTM Team 30.9/350
PEDAL Trekking-Pedal VP-616 anti-slip
CARRIER KTM Racktime light (snap-it 1.0)
LIGHT F B&M Lumotec IQ-XS LED 100-150Lux
FENDER SKS A55K 55mm black matt
KICKSTAND Hebie 28″ adjust
WEIGHT 25,7 kg
PERMISSIBLE TOTAL WEIGHT 144 kg
COLOR: green purple-flip matt (silver+blue)
