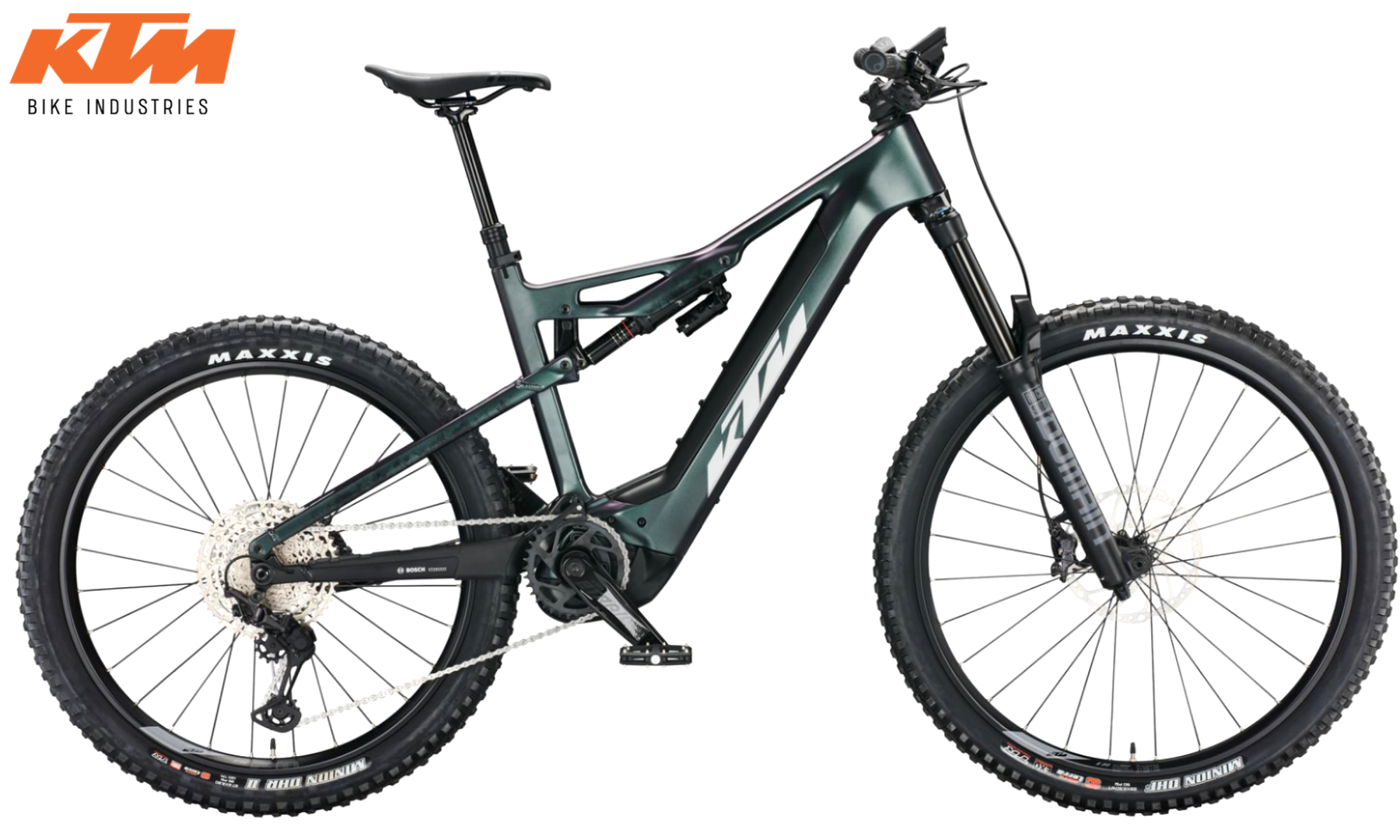

KTM MACINA PROWLER MASTER

ALL IN. ALL OUT. Your ace up the jersey sleeve! With the MACINA PROWLER carbon frame our engineering team has gone “all in”. All PROWLER models have been thought through, conceived, and trimmed to perfection down to the last detail. Thanks to the proven STRAIGHT-LINE-LINK (SLL) concept for a sensitive and direct suspension performance, 180mm travel at the fork and 170mm at the rear, the PROWLER’s field of application is on demanding enduro trails. The Dimension-Mix (DiMMiX) provides a decisive advantage in difficult situations: 29-inch wheel at the front for optimal riding stability paired with the 27.5-inch PLUS tire at the rear for best power transmission and traction. The BOSCH PERFORMANCE LINE CX motor and the most powerful BOSCH POWERTUBE battery ever (750WH) provide massive support. In addition, the EBIKE FLOW APP opens the door to the digital world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the increase in battery size and capacity. Removing and reinserting the battery is easier than ever before. POWER TUBE TOP LOADER (PTTL) is the name of KTM’s own innovation for this user-friendly battery handling.
Specification:
E-SYSTEM: BOSCH PT-CX7K4
FRAME: Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
FORK: FOX 38 Float 29″ Rhythm e-bike 180mm
SHOCK: FOX Float X Performance 2-Pos 250×75
MOTOR: Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25km/h / 85Nm
DISPLAY: Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM
BATTERY: Bosch PowerTUBE 750Wh SMART SYSTEM hor.
CHARGER: Bosch STANDARD Charger 4A SMART SYSTEM
R. DERAILL: Shimano Deore XT M8100-12 SGS shadow+
SHIFTLEV.: Shimano Deore XT M8100-12
CRANKSET: KTM E-TRAIL ISIS 160mm Q16
CHAINRING: FSA Megatooth steel 36T 12speed Direct Mount
SPROCKET: Shimano Deore M6100-12 / 10-51
CHAIN: Shimano M6100-12
BRAKE: Shimano Saint M820 / M820 4-Piston
ROTOR: Shimano RT64 CL 203 / 180
WHEEL F: KTM E-Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
WHEEL R: KTM E-Comp Trail 27 CL 148/12TA / 584x35TC made by DT Swiss
TIRE F: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622
TIRE R: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584
GRIP: Ergon GA20
BAR: KTM Team Trail35 rizer25 800mm
STEM: KTM TEAM II Trail35
HEADSET: Acros AICR internal 1.1/8″-1.5″ angle limit
SADDLE: Selle San Marco Ground Short Open Fit Narrow
SEATPOST: KTM COMP II dropper internal
PEDAL: MTB-Pedal flat VP-539 nylon
WEIGHT: 25,40 kg
PERMISSIBLE TOTAL WEIGHT: 144 kg
