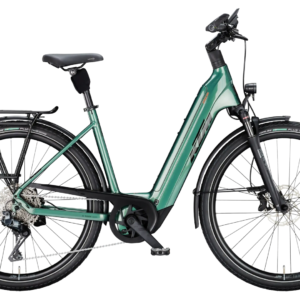

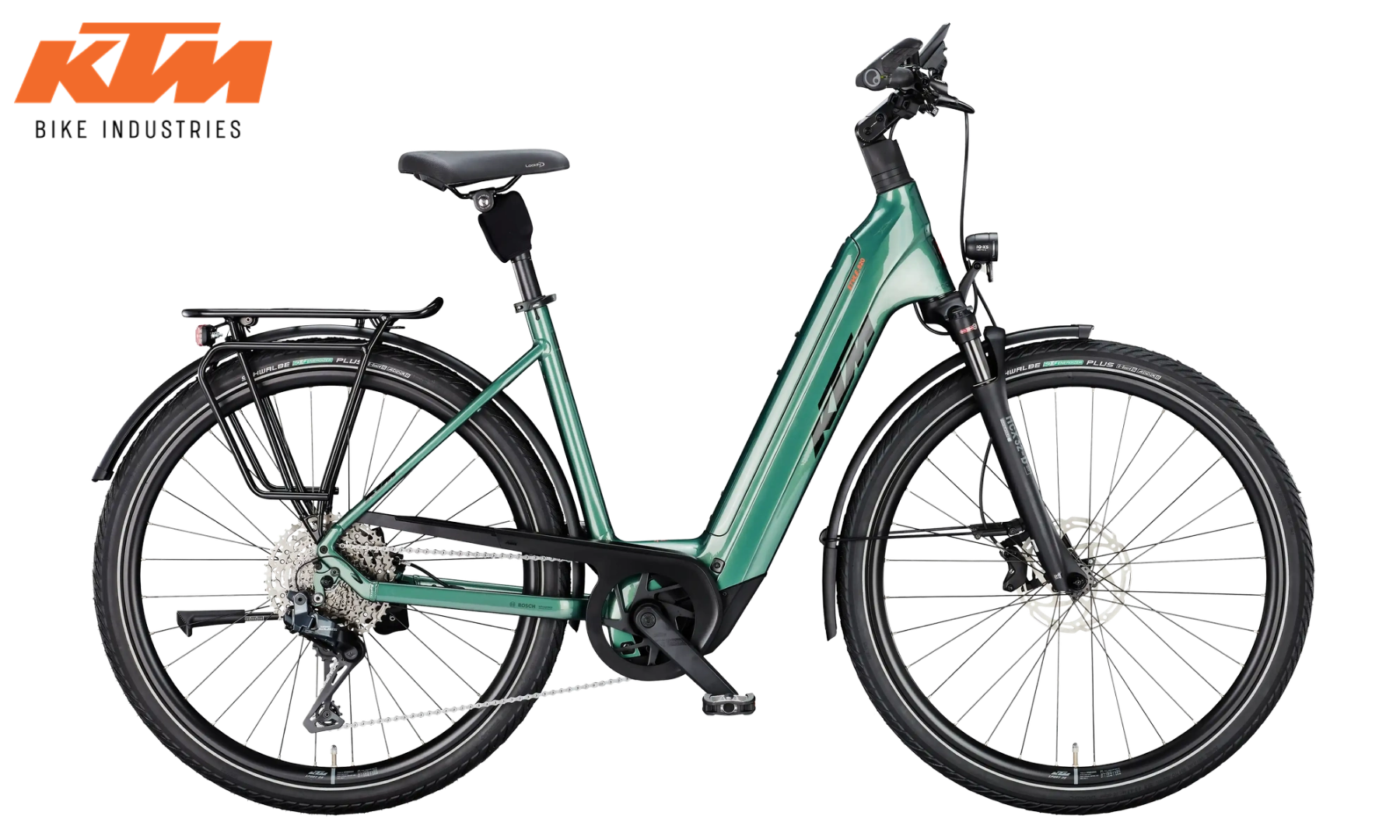

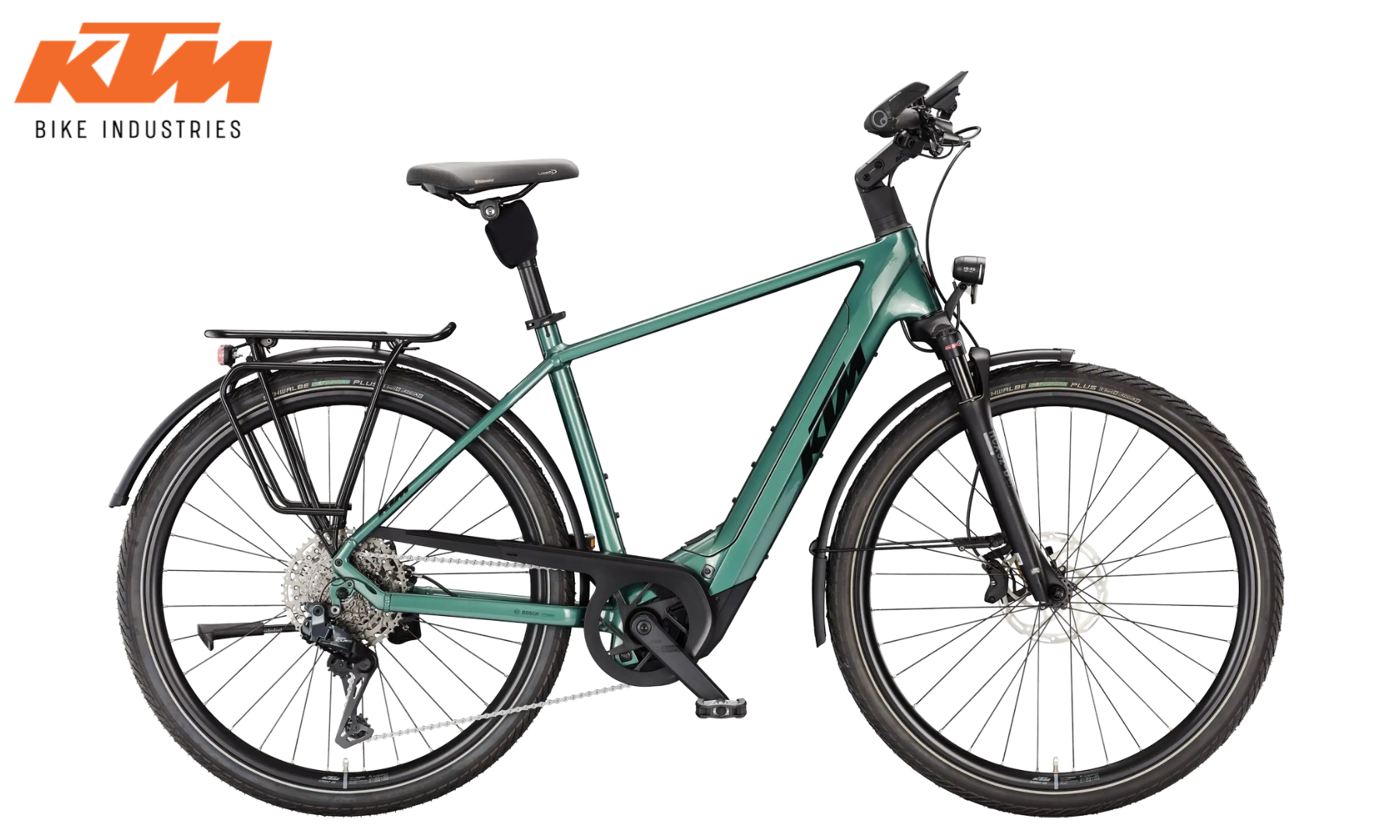

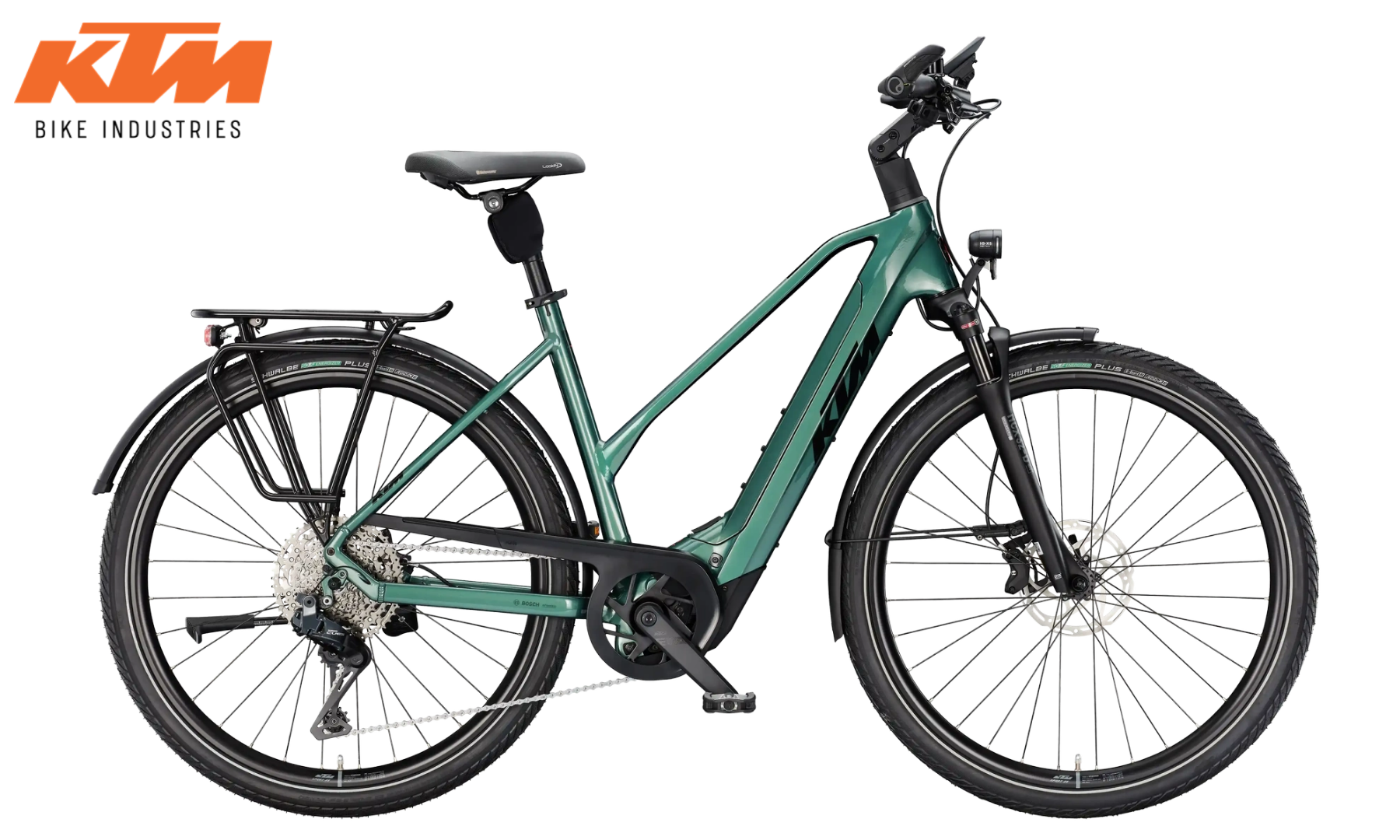

KTM MACINA STYLE 820 DI2

QUALITY. COMFORT. PERFORMANCE. STYLE. E-Trekking Onroad: One of KTM’s most successful segments is entering a new year with an upgrade featuring the BOSCH BDU384Y drive unit. The technically sophisticated recipe for success sounds simple: quality, comfort, performance and style. The TREKKING concept includes a robust aluminum frame, an adjustable stem, and a suspended seat post. It should be emphasized that with the new GRAN models, the successors of the reigning “Stiftung Warentest” winner bike are in this range. The Performance Line CX (BDU384Y) takes riding dynamics and agility to a whole new level. It is powerful, light and quiet (100 Nm max. torque, 750-Watt max. motor power, 600% max. support factor). The Power Tube battery provides 800 Wh. POWER TUBE TOP LOADER (PTTL) is KTM’s innovation for user-friendly battery handling. Removing and reinserting the battery becomes a breeze
Specification
FRAME Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940
FORK Suntour NCX32-D Air LO 63mm 1 1/8
MOTOR Bosch PERFORMANCE CX BDU3840 up to 100Nm
DISPLAY Bosch LED Remote / KIOX 500 TFT Display
BATTERY Bosch PowerTUBE 800Wh horizontal
CHARGER Bosch STANDARD Charger 4A
R.DERAILL Shimano CUES Di2 U8050-11 SGS shadow
SHIFTLEV. Shimano CUES Di2 EN605 Switch
CRANKSET KTM E-COMP2 ISIS 170mm Q8
SPROCKET Shimano LG400-11 / 11-50
CHAIN KMC e11 Sport EPT e-bike
TIRE F Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
TIRE R Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
GRIPS Ergon GP30
BAR KTM Line rizer20 640mm
STEM KTM Line adjust. 0-60° ICR
HEADSET Acros AICR internal 1.5″-1.5″
SADDLE Selle Royal Lookin
SEATPOST Suntour SP25-NCX suspension 30.9/350
PEDALS Trekking-Pedal VP-616 anti-slip
CARRIER KTM tour snap-it 2.0/monkeyload|childseat + rack clip
LIGHT F B&M IQ-XS 80Lux
LIGHT R B&M Toplight 2C
FENDER SKS A55K PET Trek 28″
CHAINGUARD KTM type 9 for Bosch BDU38
KICKSTAND KTM 28″ adjustable MY2025
WEIGHT 28.2
PERMISSIBLE TOTAL WEIGHT 146
